The Mini Pallet System

The Mini Pallet System (MPS) is designed for smaller machines where less aggressive machining and tighter work envelopes are the norm. The system is still built with the same robust components found in our flagship Pro Pallet System but with a lower starting price and simplified design. Choose from two pallet sizes – 6″ x 10″ or 8″ x 14″.

Mini Pallet System
Starter Package

The Mini Pallet System (MPS) Starter Package streamlines purchasing. We’ve even discounted the system so you know you’re buying smart.

Package Includes:

  • MPS Base
  • Size Choice of 1 MPS Pallet
  • Connection Kit
  • 4 Pack of Clamps and Bolts

Starter Package starting at

$1,240.00

ON SALE NOW! $1095.00

Customize & Buy!

Mini Pallet System Base

The MPS Base uses a single radial bearing locking mechanism to provide 1500 lbs of downward locking force. The fail-safe system is air actuated to release and spring powered to lock. Repeatability is .0003″ due to the precision ground locating pins. The combination of hard-anodized aluminum and hardened stainless components ensures excellent wear resistance.

Base Features

  1. .0003″ repeatability due to precision ground locating pins
  2. Hardened stainless contact pads ensure excellent wear resistance
  3. 1500 lbs of downward locking force and a fail-safe system that is air actuated to release and spring powered to lock
  4. Clamp on any side of the hard anodized aluminum body

MPS-Base – $925.00

Add to Cart
Mini Pallet System Logo
Mini Pallet System Front
Mini Pallet System Top

Mini Pallet System Pallets

Standard pallets are 1-1/4″ thick and come in two sizes of 6″x10″ and 8″x14″ and locate with .0003″ repeatability. 6061-T6 Extruded Aluminum assures easy machinability. The bottom locking surfaces use hardened stainless steel for long life. The tops have a mill finish and ready to customize.

Pallet Features

  1. Hardened Stainless Steel Locking Inserts
  2. Hardened and Ground Tool Steel Bushings
  3. 6061 T6 Aluminum for easy fixture creation

Pallet Sizes:
6″ x 10″ x 1.25″
8″ x 14″ x 1.25″

Accessories

Connection Kit

  • Hand Valve w/ Table Mounting Bracket
  • Air Lines (20′)
  • All Necessary Fittings

This connection kit gives you peace of mind ensuring you’ll have all the proper components to be up and running within minutes of opening the box. Plus, only one hand valve is needed to operate multiple bases when chained together. Kit is included in Starter Packages.

MPS-Connection – $75.00 USD

Add to Cart

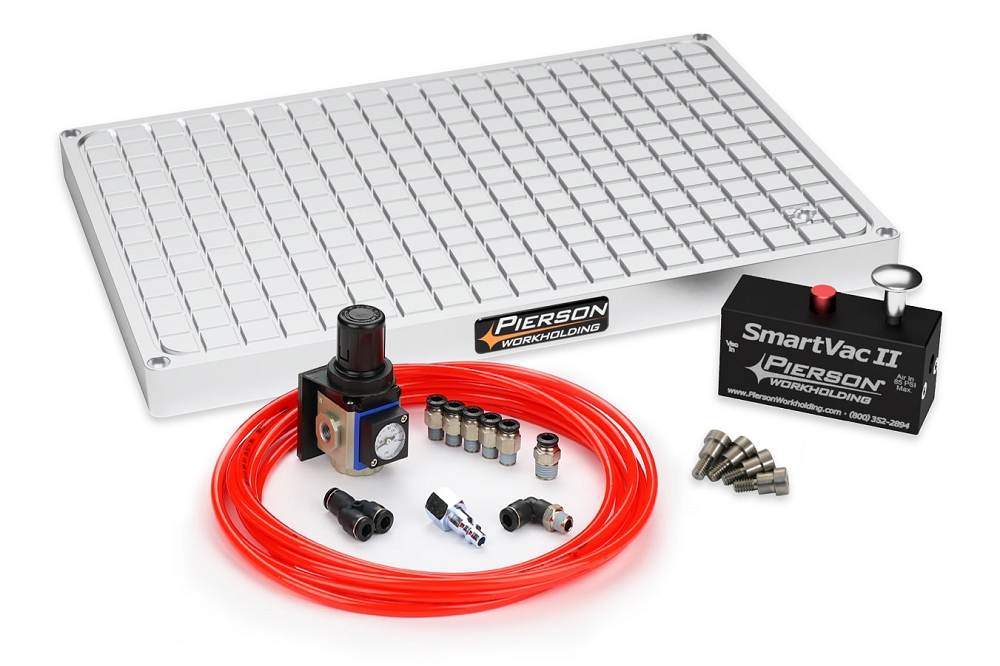

Vacuum Pallet Kit

  1. Single inlet 9.5″ x 14″ chuck.
  2. Vacuum Connection Kit
  3. Shoulder bolts for locating Top Plates
  4. Shop proven Vacuum Power Unit

Adding vacuum workholding capabilities to the PPS is easy with this Vacuum Pallet Kit (VPK). This kit includes our Vacuum Power Unit, Connection Kit, 25′ of Vacuum Gasket (not shown) and a 9.5″ x 14″ vacuum chuck which locks onto the MPS Base as easily as other pallets.

MPS-VPK – $1,050.00

Add to Cart
SmartVac II Starter Package

Vacuum Chuck Top Plate

  1. By using specialized locating bolts, the Top Plates are aligned and secured to the SmartVac II Base with a repeatability of 0.001″.
  2. Aluminum plate is ground flat to within 0.002″ with a smooth surface of 18 RMS.
  3. The bottom side of the Top Plates are strategically pocketed to pick up the vacuum source wherever you drill through.

SV2-Top-914 – $95.00

Add to Cart
Top Plate Flagged

Use a Top Plate to customize a fixture to your part’s exact size and shape. Simply machine a 0.118″ slot 0.100″ deep just inside the edge of your part profile and tuck the 1/8″ gasket cord in the groove. Drill a through hole to allow the vacuum to flow inside the perimeter of the gasket area.

Visit our online store
for more accessories

Visit the Online Store

DOWNLOADS

Printables: MPS Manual (PDF)
Models: MPS Model for Fusion 360 | MPS Model in STEP format

VIDEOS

John Grimsmo unboxes his MPS

John Grimsmo unboxes his MPS

John Grimsmo unboxes his MPS

FAQs

1. What is the biggest difference between the Mini Pallet System and the Pro Pallet System?

The Mini Pallet System is built with the same basic components of the Pro Pallet System, but with the roughly half the components and cost. The MPS is best suited for lighter machining applications (spindles under 7 horsepower). The base lacks a perimeter seal so air/mist coolant is preferred over flood coolant but still functions perfectly in any cutting conditions.

2. What is the accuracy of the Mini Pallet System?

The repeatability of the MPS is .0003" - the same as the PPS. However, the MPS lacks a cast iron core which makes it more sensitive to large temperature fluctuations that could change accuracy up to .001".

3. How rigid is the system?

In short, very rigid. Bolting the base down with 2 included toe clamps is sufficient, but the question arises about the overhang of the pallets. For this reason, we've limited the maximum pallet size to 8" x 14". 2000 lbs of force at the corner of the larger pallet can flex it up to .004" in Z, but stable in X and Y. However, in reality no drill or endmill exerts this much force without breaking.

4. Is there a hardware kit to make my own pallets?

The MPS uses tight tolerance components that depend on equally tight tolerance machining of the aluminum pallet. For this reason, we prefer to manufacture all pallets in-house so that performance will not be affected. One workaround is to use our pallets as a master in which the user can bolt on other fixture plates.

5. Where can I purchase a Mini Pallet System?

All of our products can be purchased directly through us. This allows us to establish a close relationship with our customers and provide the best applicaton advice possible. Click here to order online or give us a call to place an order at (800) 352-2894. We accept all major credit cards and company checks.
