MAX-4 Pallet System
Maximize 4th axis machining.
Bring the productivity of high-density palletized workholding to your 4 and 5 axis applications. The MAX-4 (Multi-AXis) Pallet system allows for more parts per cycle, fewer tool changes, and maximum productivity. The fail-safe design is unlocked using compressed air and the locking action is spring powered with over 15,000 lbs of retention force.
- Harness the Power of a 4th or 5th Axis
- Fail-Safe Pallet Retention
- Rock Solid Rigidity
- Best for Automation
MAX-4 Pallet System
- retention force
- 15,000 lbs
- retention force
- repeatability
- .0002″
- repeatability
- Hardened Fasteners vs 1 single thread of other Zero-Point Systems
- 8
- Hardened Fasteners vs 1 single thread of other Zero-Point Systems
- standard pallet sizes
- 2
- standard pallet sizes
MAX-4 Pallet System Starter Package
The MAX-4 Starter Package streamlines the purchasing of your Pierson MAX-4 Pallet System. We've even discounted the system so you know you're buying smart.
- One MAX-4 Base
- One Connection Kit
- Four Pallets of your choice:
- Four 2″ H x 5.9″ Dia pallets
- Four 6″ H x 5.9″ Dia pallets
- Two 2″ H x 5.9″ Dia and Two 6″ H x 5.9″ Dia pallets
Components
1 / 4

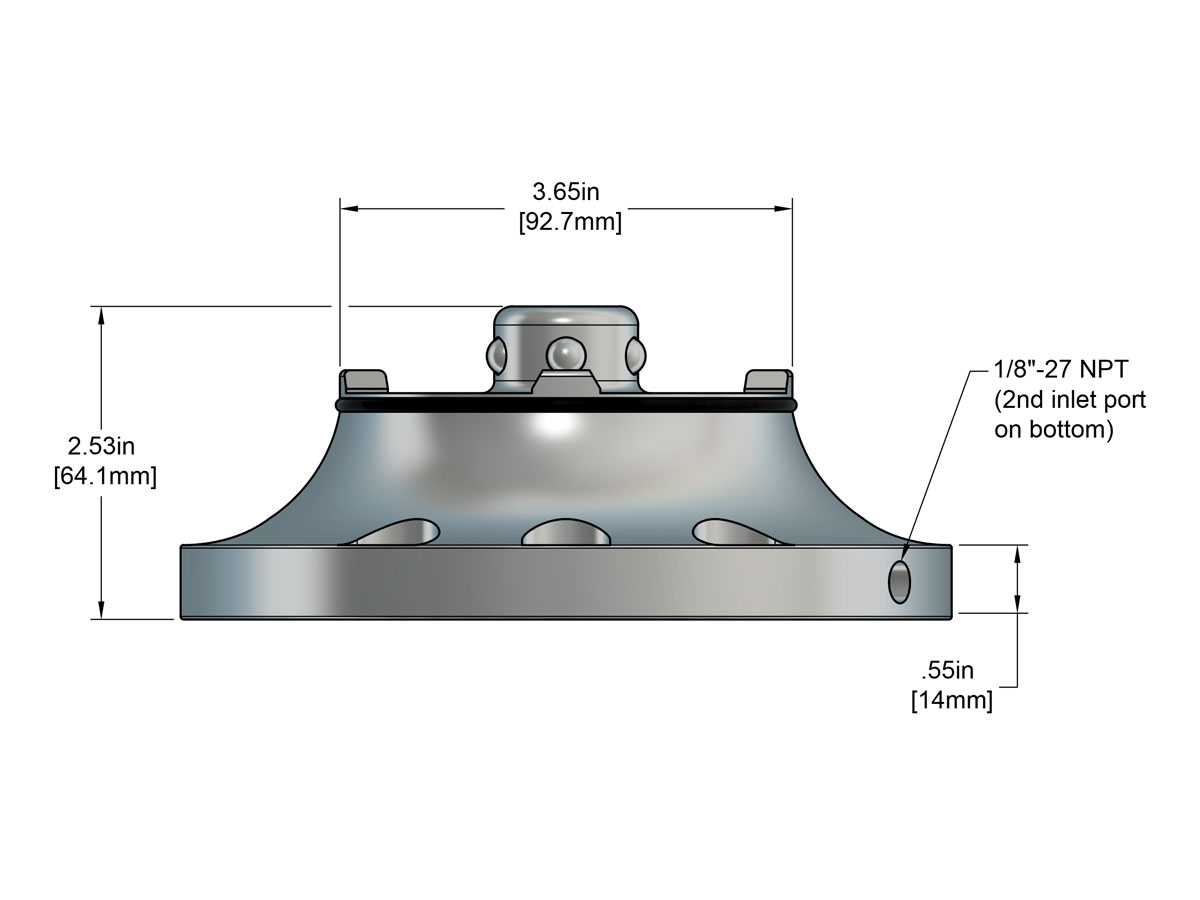

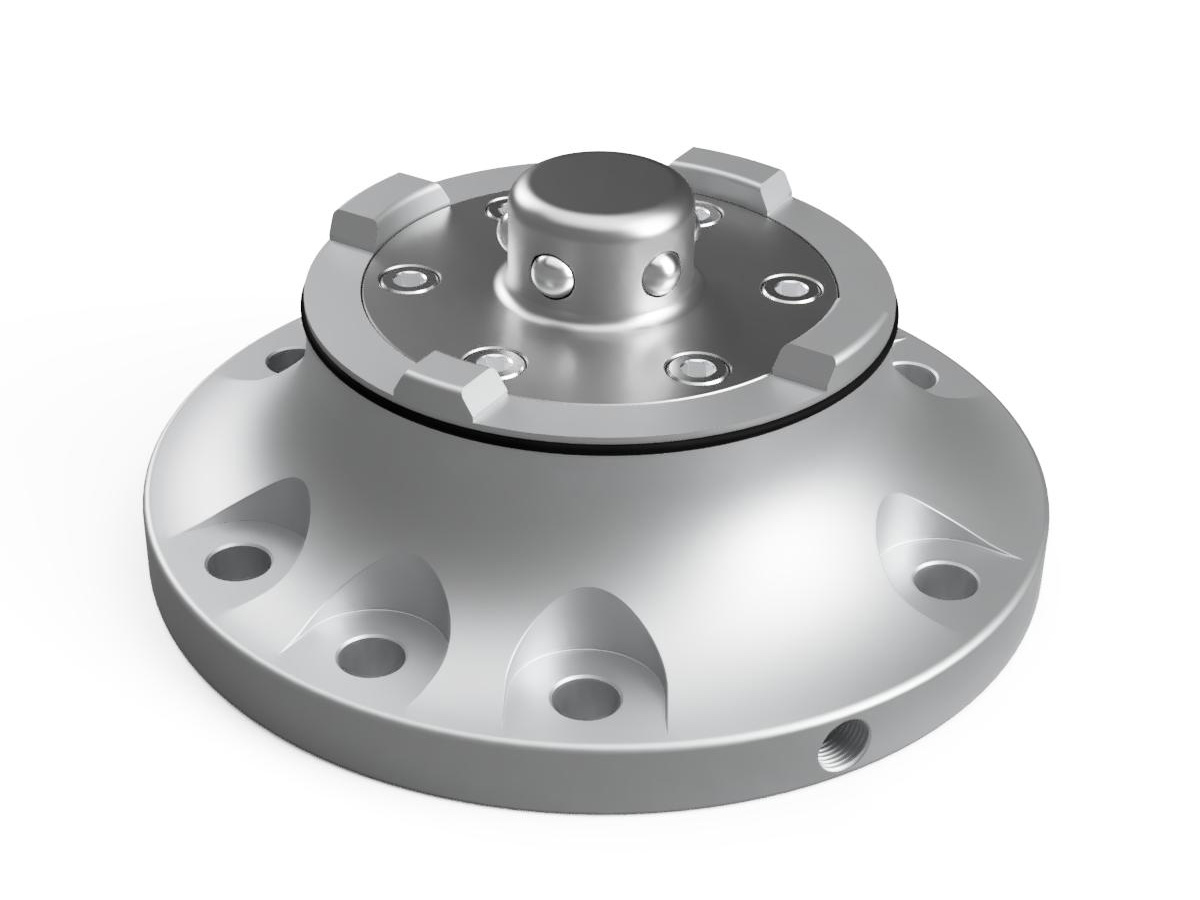

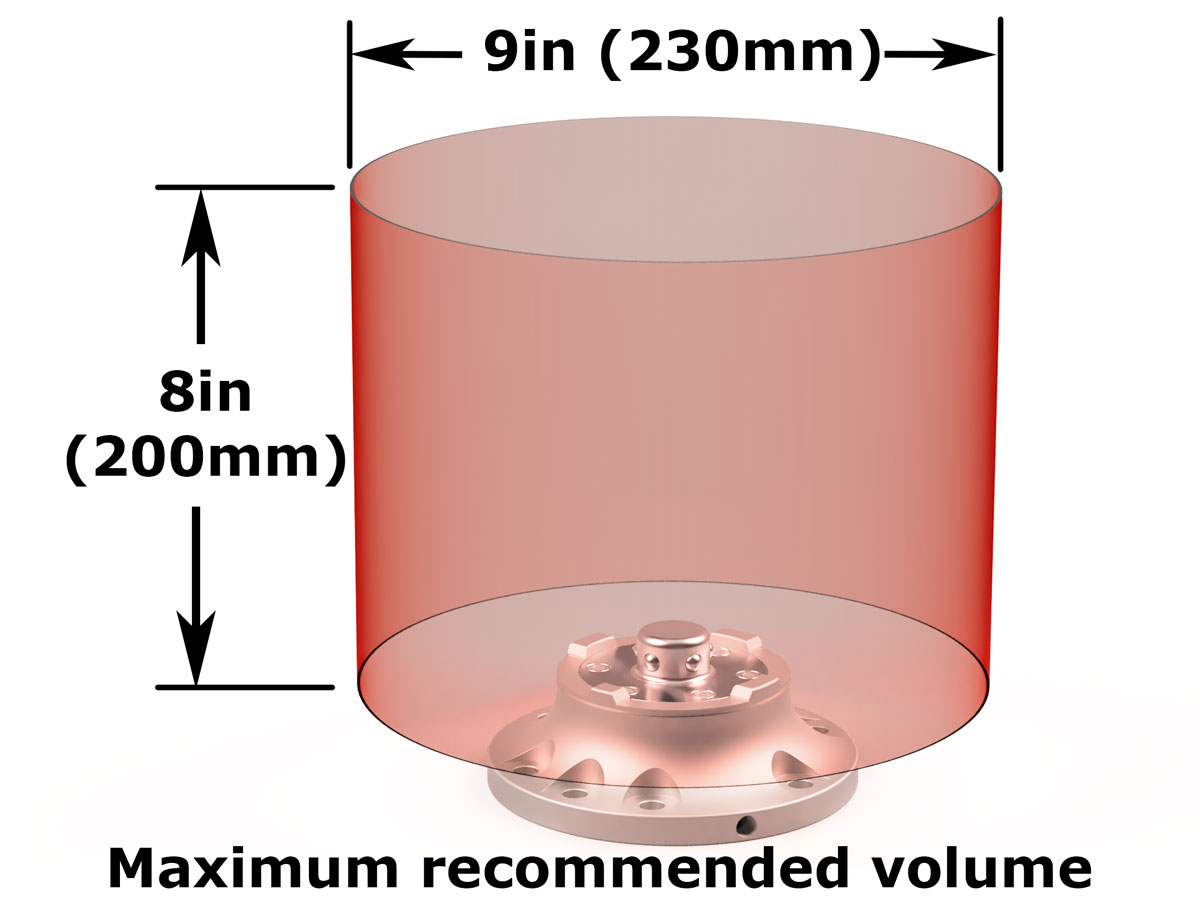

MAX-4 Base

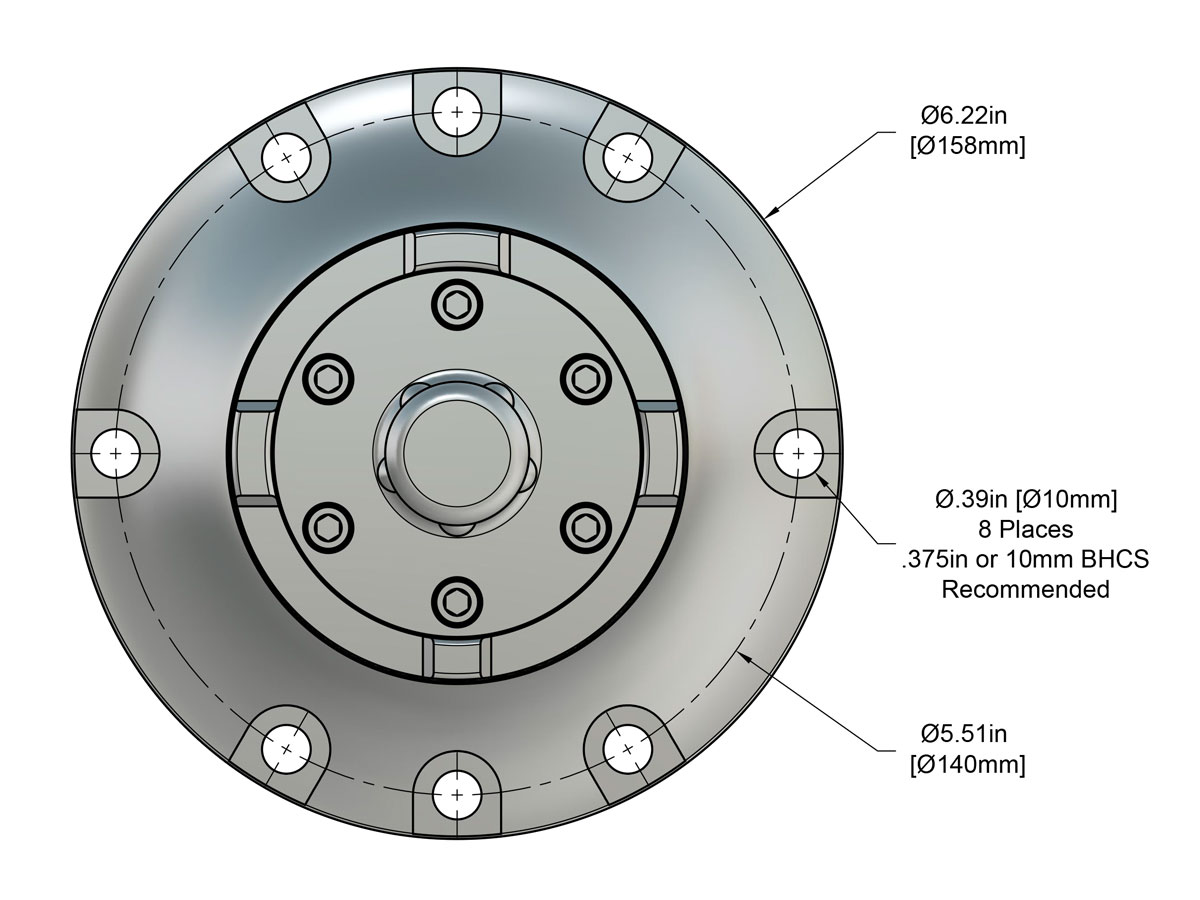

The MAX-4 Pallet System Base is the perfect foundation for advanced 4 and 5 axis palletized workholding. Out of the box, the MAX-4 Base bolts to rotary units with 4 or 6 t-slot platters as well as 140mm bolt hole patterns. A 96mm pull stud pattern is an additional mounting option. The system is air actuated to release pallets and spring powered for the locking action. This means pallets stay securely locked even with no air to them. A center and side air inlet allow you to customize the setup for center bore or side plumbing.
- .0002″ repeatability due to the self-centering quad taper design
- Hardened stainless contact pads ensure excellent wear resistance
- 15,000 lbs of retention force and a fail-safe system that only uses air to release pallets and spring powered to lock pallets in place
- Wide mounting flange for 4 and 6 bolt interfaces
1 / 3

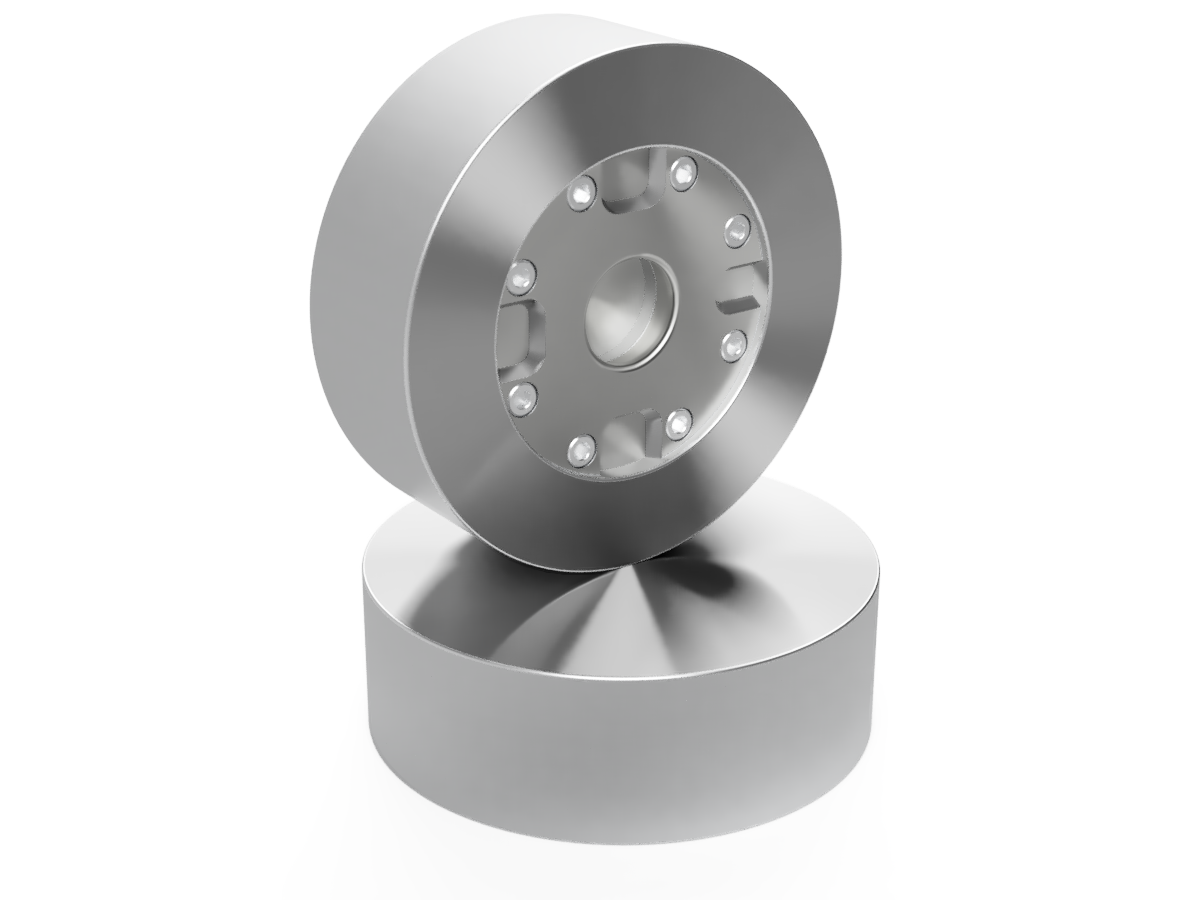

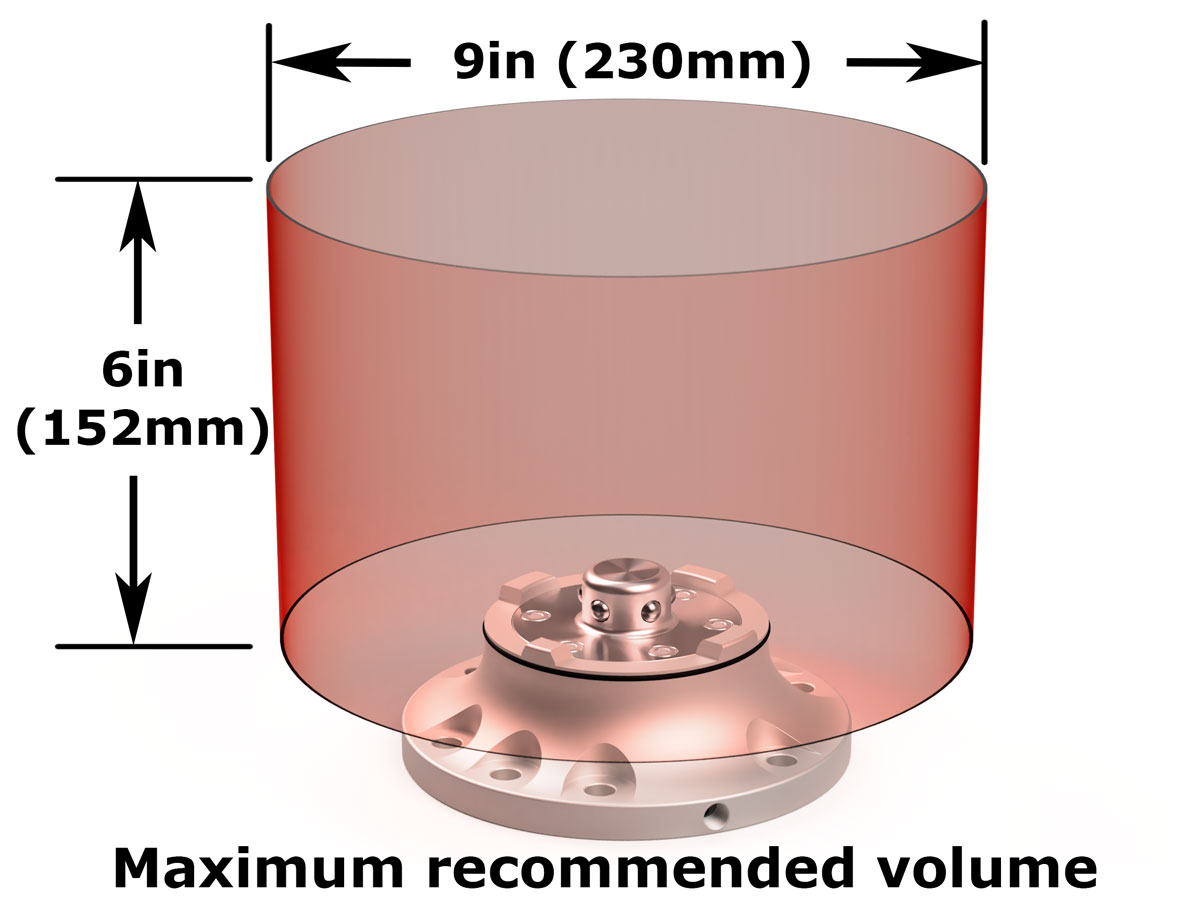

MAX-4 Pallets

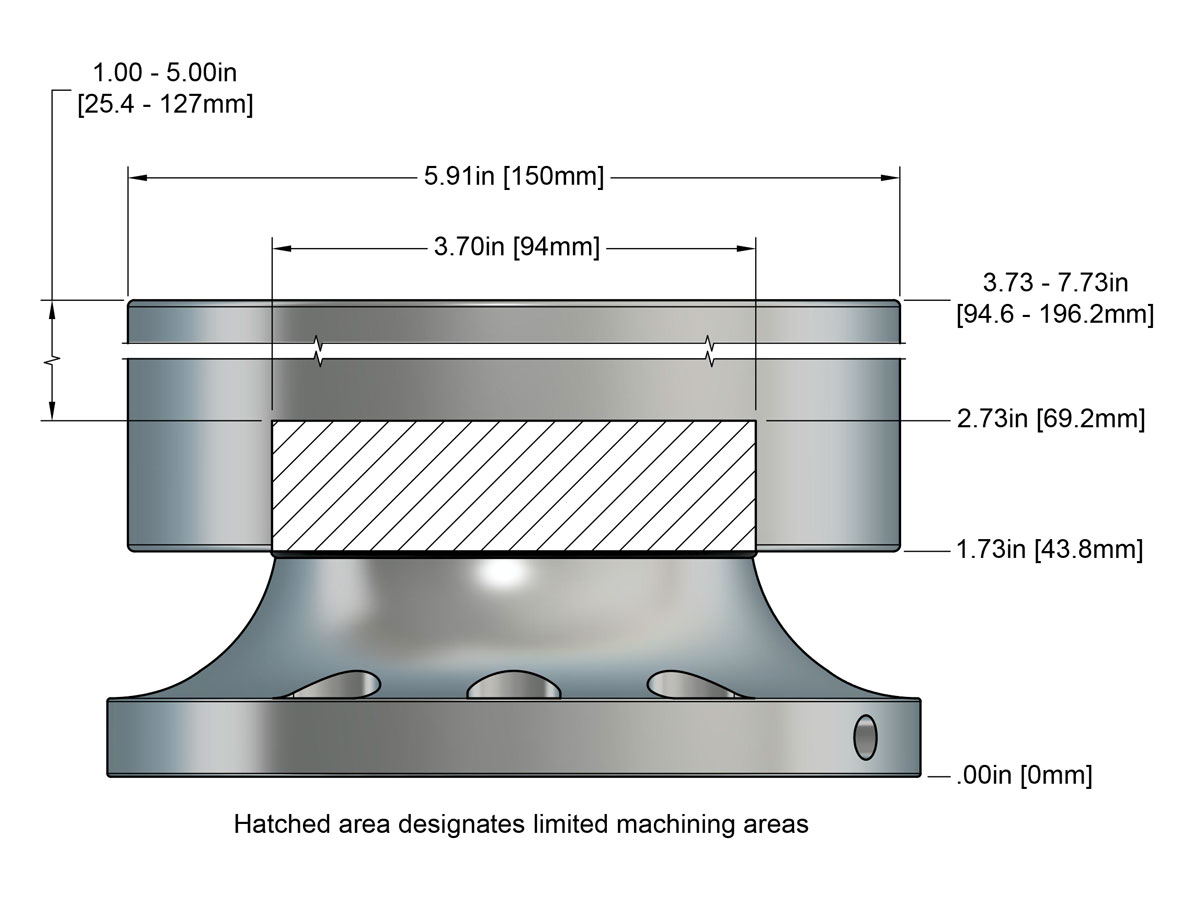

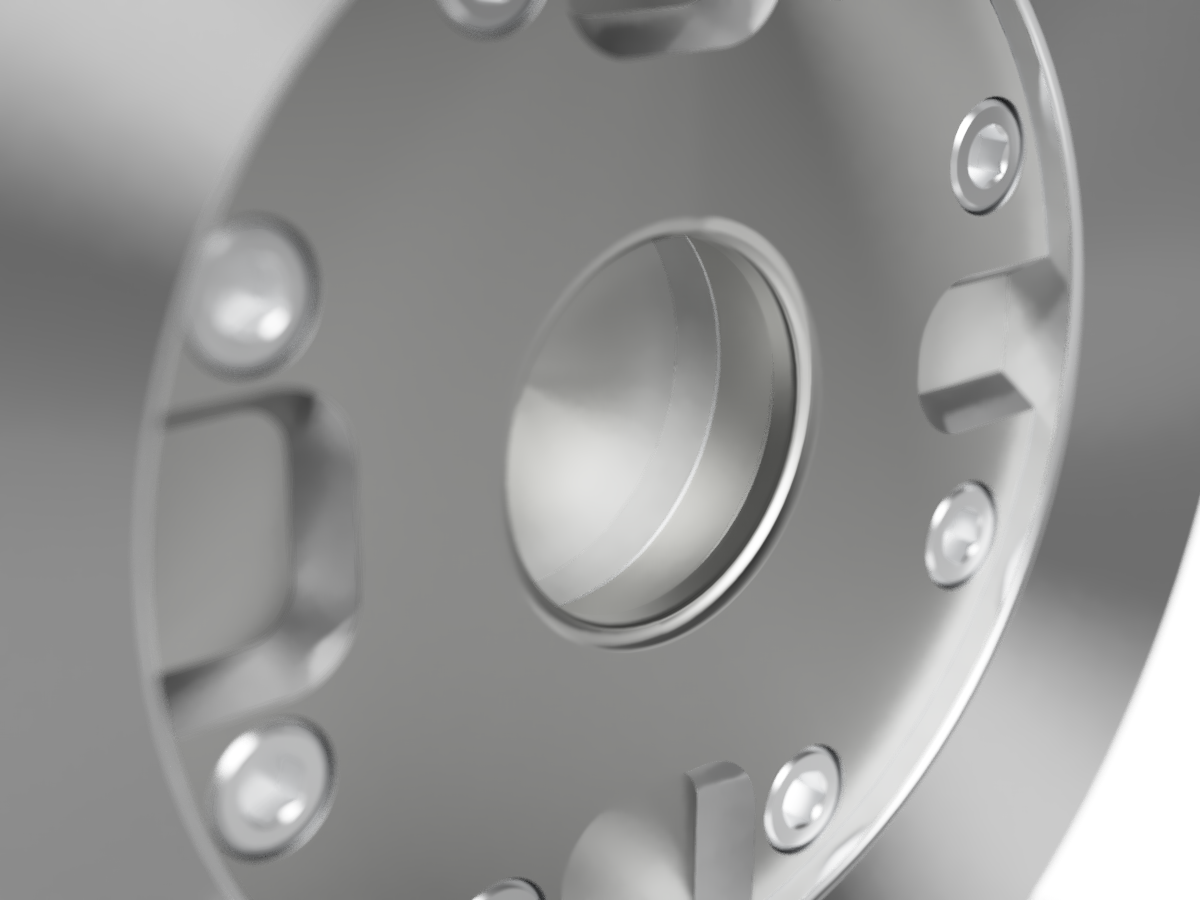

Two pallet sizes of 2″ x 5.9″ and 6″ x 5.9″ locate on the MAX Base with .0002″ repeatability due to the tapered, self-centering geometry. 6061-T6 Aluminum assures easy machinability. All locking surfaces are hardened stainless steel. The tops and sides of these standard pallets are blank and ready to customize.
- 6061 T6 Aluminum for easy fixture creation
- Hardened Stainless Steel Locking Insert
Pallet Sizes: (H x D)
2″ H x 5.9″ Dia – 5.9 lbs (51mm x 150mm – 2.7kg)
6″ H x 5.9″ Dia – 16.6 lbs (152mm x 150mm – 7.5kg)
Accessories
1 / 2

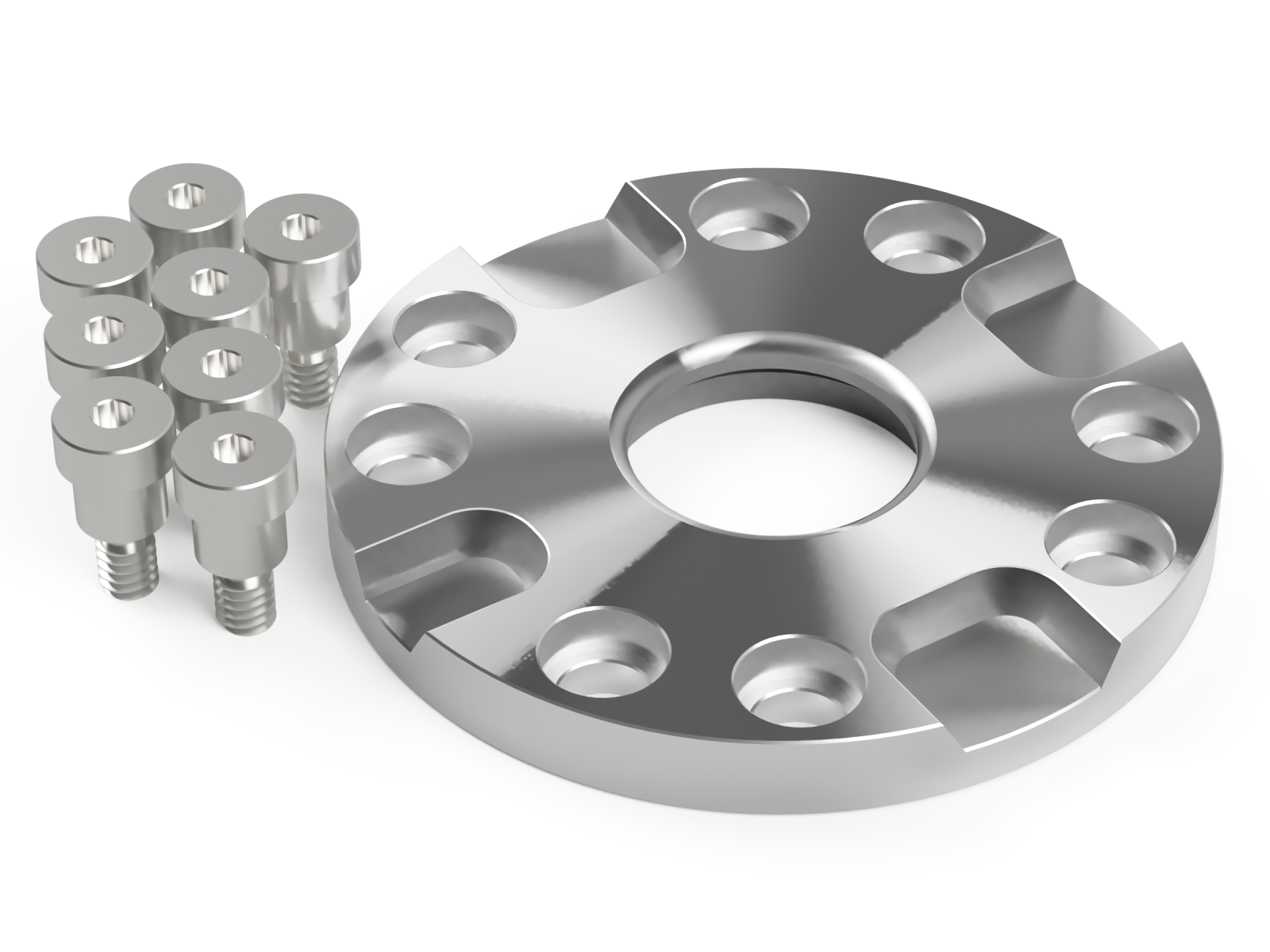

Hardware Kit

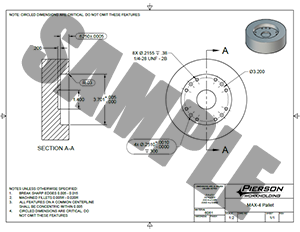

If you’re looking for a custom sized pallet or just want to make your own, this kit contains all the necessary components to build it yourself. The hardened stainless steel Pallet Lock Insert is secured using 8 hardened shoulder bolts (1/4-20 thread). The kit includes PDF and STEP files available for download immediately after an order is placed.
1 / 5

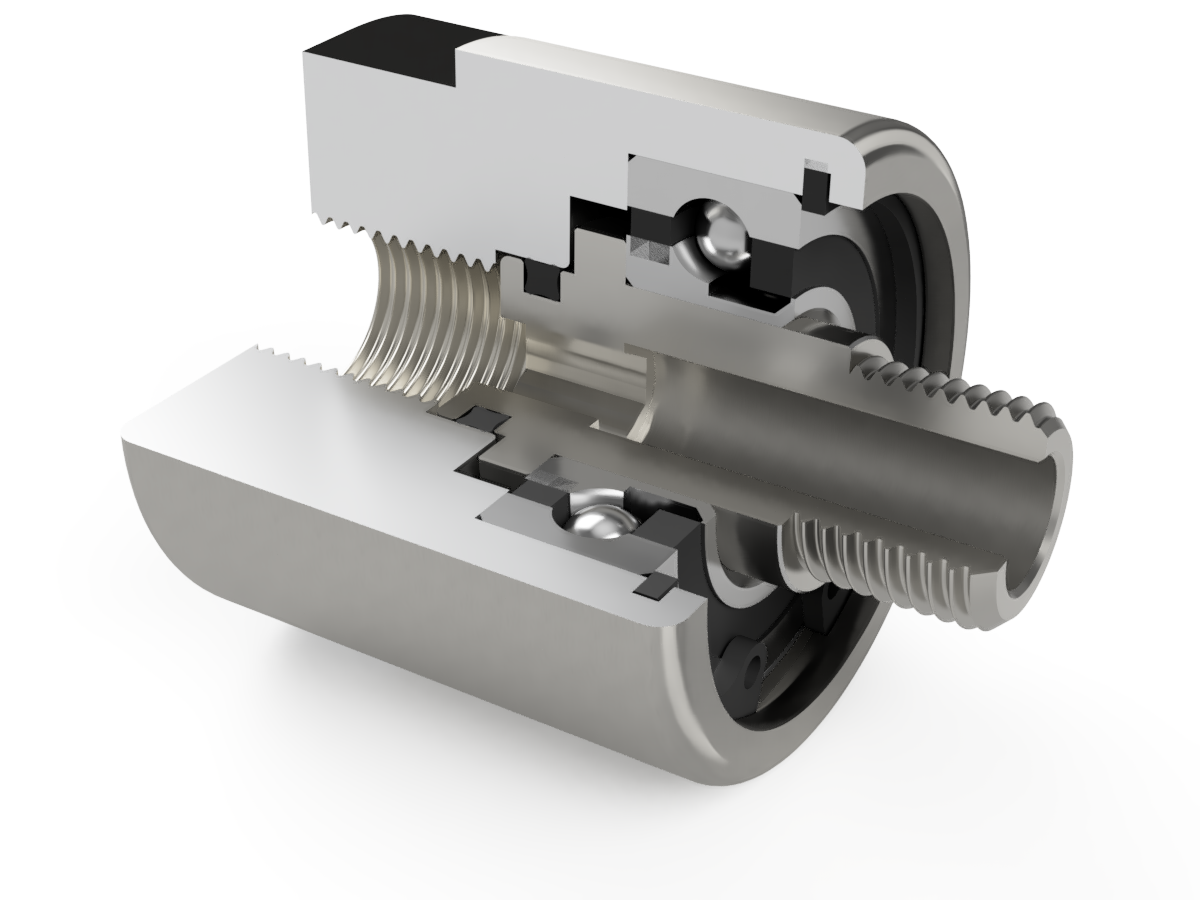

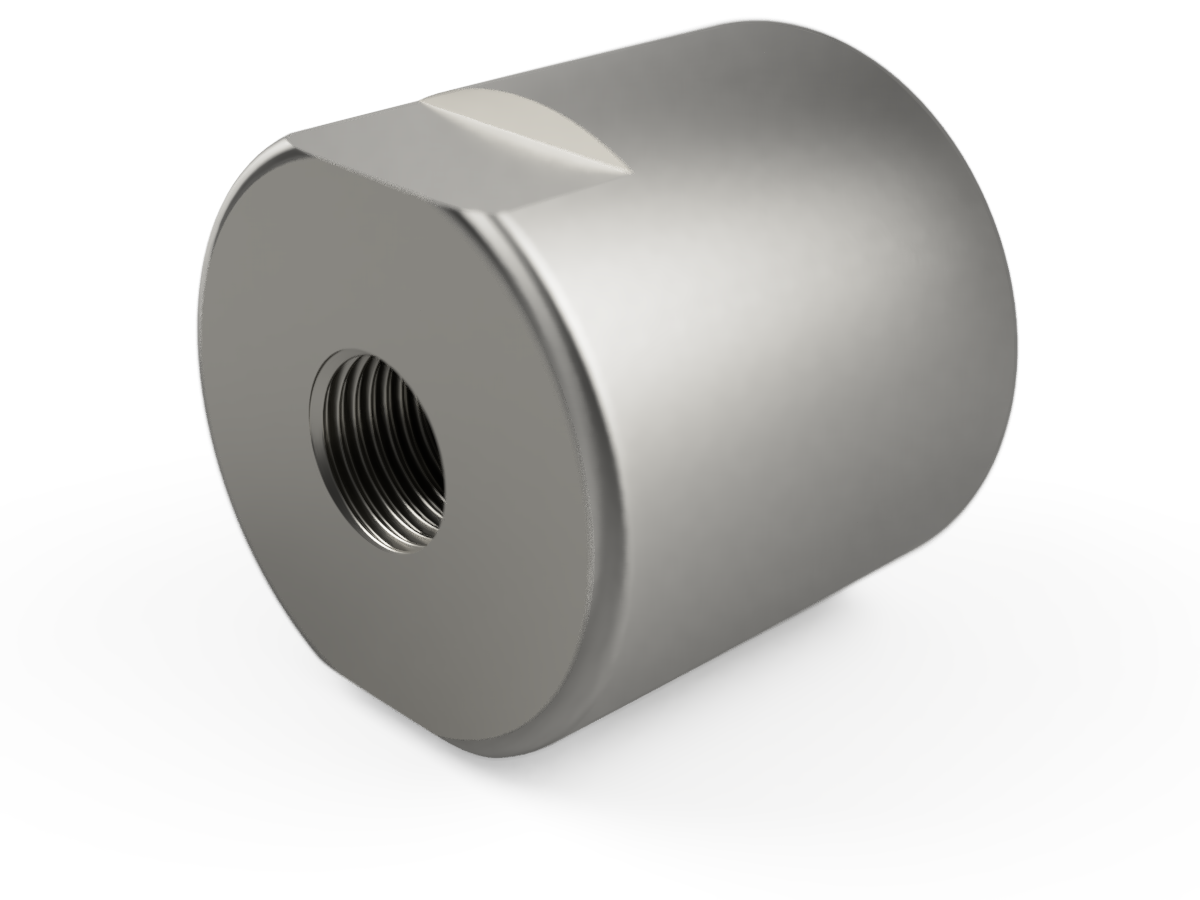

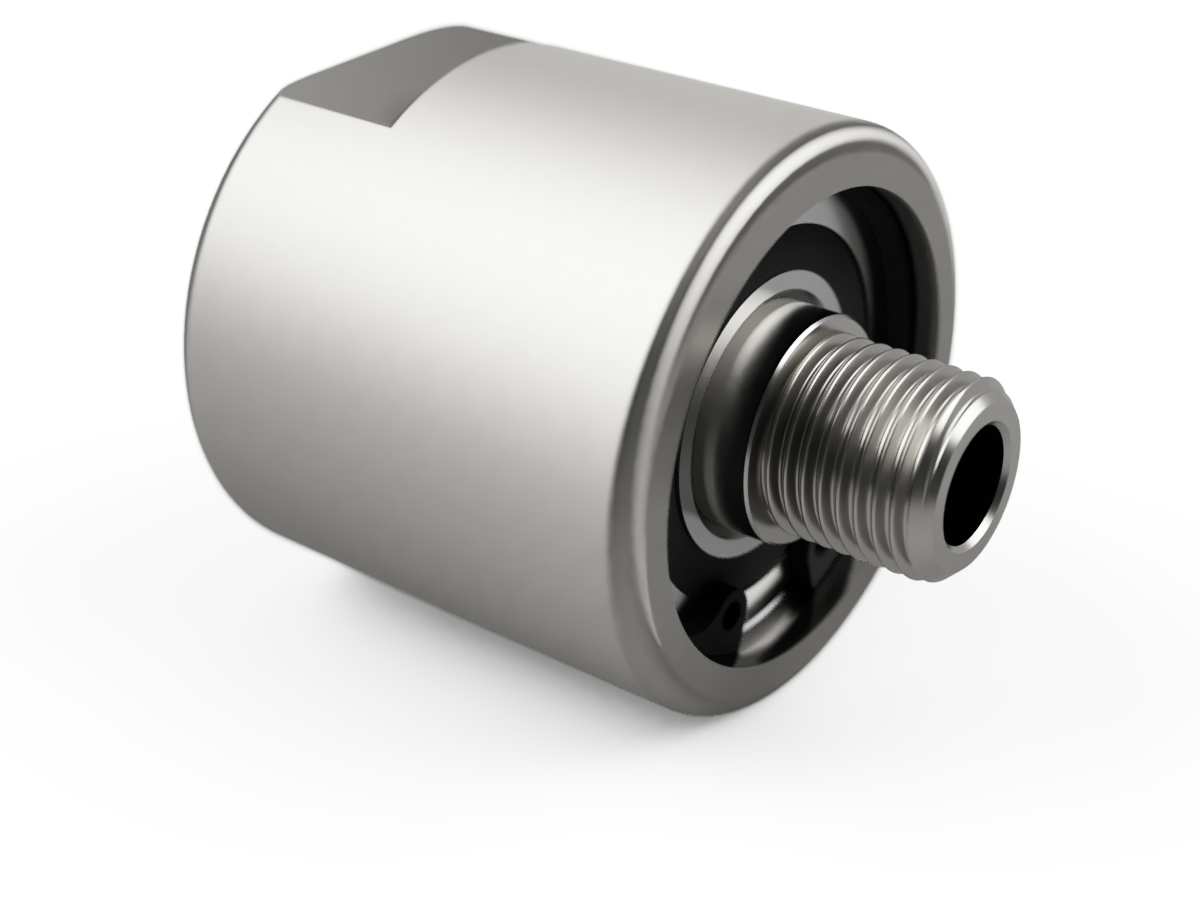

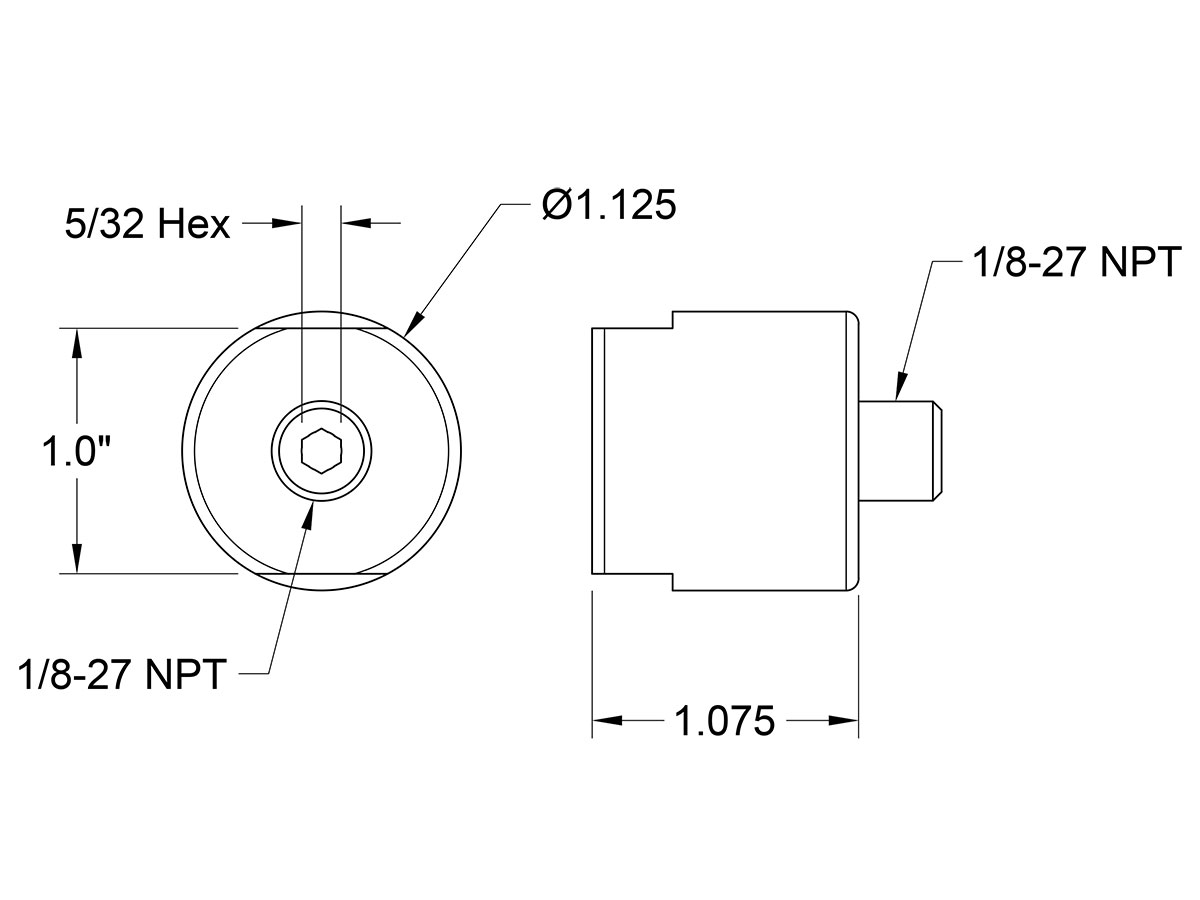

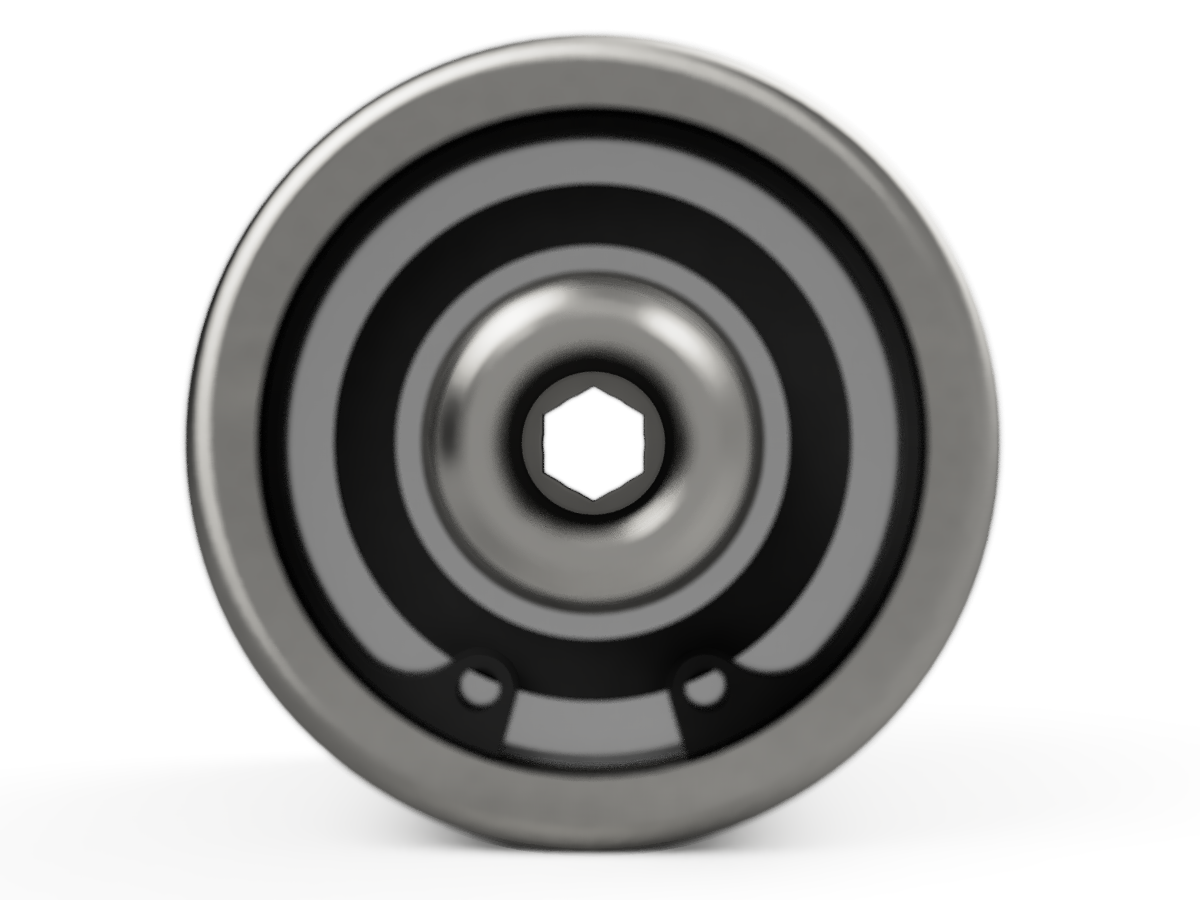

Rotary Union
Use our Rotary Union to reduce chances of twisted airlines that can create an unsafe condition. This low-speed, low-friction, high-pressure rotary union routes airlines through the center bore of 4th axis rotary units. It is a plug and play integration with the MAX-4 Base which has an 1/8-27 NPT center tapped inlet. Install using a 5/32″ hex wrench through the center.
- 28 inHg vacuum to 150 psi compressed air
- 100 RPM (600 deg/sec) max
Connection Kit
- Hand Valve w/ Table Mounting Bracket
- Air Lines (20′)
- All Necessary Fittings
This connection kit gives you peace of mind ensuring you’ll have all the proper components to be up and running within minutes of opening the box. Plus, only one hand valve is needed to operate multiple bases when chained together. Kit is included in Starter Packages.
Visit Our Online Store for More Accessories
Visit the Online StoreFAQs
1.What is the biggest difference between the MAX-4 and the RotoVise Pro?
While the RotoVise Pro focuses on enhancing 4th axis machining productivity with its multi-face access and compact design, the MAX-4 Pallet System aims at maximizing part density and minimizing idle time for both 4 and 5 axis machines. The MAX-4's single pallet is best for quicker changes for smaller, multi-face parts while the RotoVise Pro excels in vise or pallet applications, albeit with longer part change times.
2.What is the accuracy of the MAX-4 System?
The repeatability of the MAX-4 System is .0002" or greater. In most rotary applications, the best repeatability is more dependent on the accuracy of establishing the setup's origin, the center of rotation, and the condition of the rotary unit itself.
3.How rigid is the system?
In short, very rigid. The MAX-4 Base is intended to be bolted down with 4 or 6 bolts depending on the style of the rotary platter. Compared to other zero-point systems, the MAX-4 Pallet's locking hardware is secured to the pallet with eight 1/4-20 shoulder bolt fasteners on a 3.2" diameter pattern rather than relying on the thread of a single pullstud found on traditional systems.
4.Is there a hardware kit to make my own pallets?
Yes. We sell a hardware kit to make your own pallets. The kit comes with the higher complexity/accuracy lock ring, hardware and downloads to make your own pallet. Toolpaths needed are pocketing, reaming and tapping of any material you prefer.
5.Where can I purchase a MAX-4 Pallet System?
All of our products can be purchased directly through us. This allows us to establish a close relationship with our customers and provide the best applicaton advice possible. Click here to order online or give us a call to place an order at (800) 352-2894. We accept all major credit cards and company checks.
